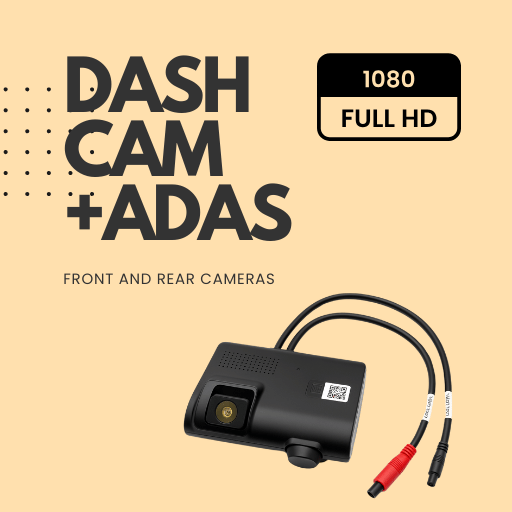

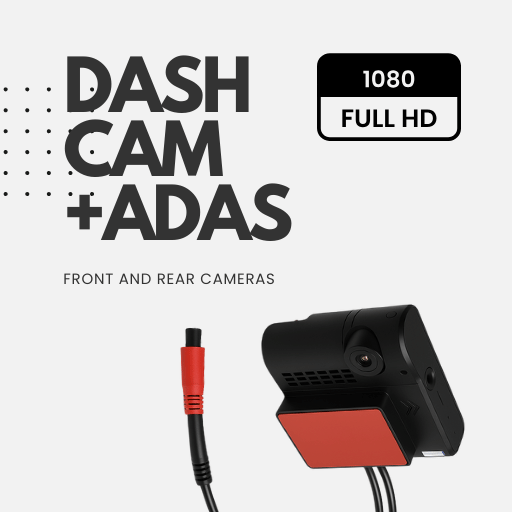

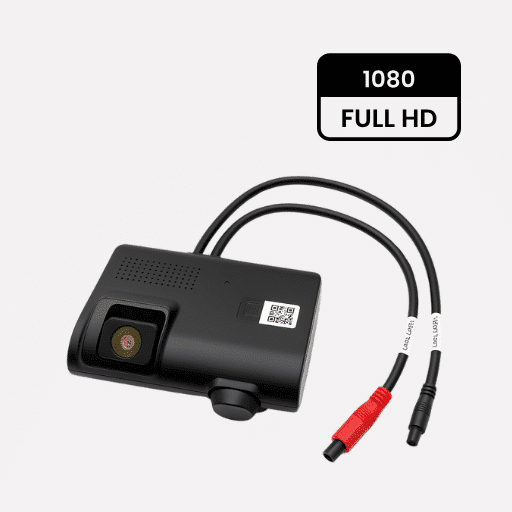

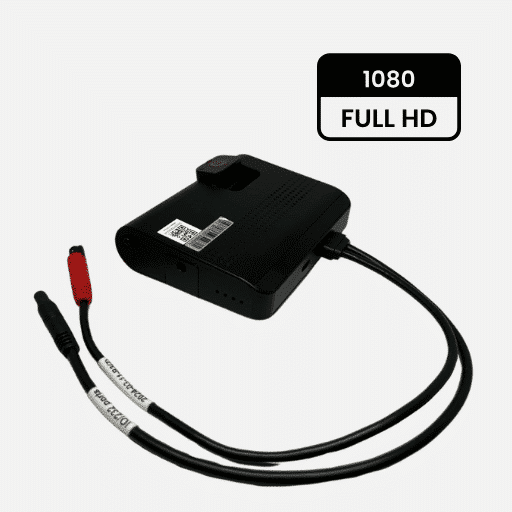

Dashcam ID300 ADAS + 2 Way Communication + GPS Tracker

Dashcam ID300 4G Traffic Realtime include GPS Tracker  (LTE CAT 1 /GNSS)

4G LTE real-time networked dashcam supports real-time satellite positioning and real-time video recording. Video and alarm data can be uploaded remotely to solve the vehicle anti-theft, anti-scratch collision, the occurrence of the above accident, the first time to report to the platform and the owner

Physical specification

Dimensions 105mm*86mm*32 mm

Weight 240g

Module

Name RC10E

Technology LTE Cat 1/GNSS

GNSS

GNSS GPS,GLONASS,GALILEO,BEIDOU,AGPS,QZSS,SBAS

Receiver 64 channel

TrackingSensitivity -160 dB

PositionAccuracy <2.0 m CEP

VelocityAccuracy < 0.1 m/s

HotStart <1 s

WarmStart <4 s

ColdStart <28 s

Cellular

Technology LTECat 1

4GLTECat 1 bands LTEF DD:B1/B3/B5/B8/B34

LTETDD:B38/B39/B40/B41

Data transfer LTE:Max10Mbps(DL)/Max5Mbps(UL)

Datasupport SMS(TXT/PDU)

Power Input :

Voltagerange 9‒36VDC

Power Consumption

At12V<6mA(OnlineSleep)

At12V<150mA(Normal)

At12V<270mA(Full load)

Operatingenvironment

OperatingTemperature -20 °C to +70°C

StorageTemperature -40 °C to +85 °C

OperatingHumidity 5% to 95% non-condensing

Interface :

DigitalInputs 2

GNSS Antenna InternalHighGain

CellularAntenna Internal4G High Gain

LEDIndication 3 status LED lights

SIM Micro-SIM

System structure linux

Chip HC1723C

Resolution 2.0MP

Sensor Resolution 1920*1080

Lens Forward:3.6MM backward:2.8MM

View angle Forward:110°D backward:140°D

Pan-til Forward:50° backward:40°

Video compression standard H.265(default)/H264 25FPS

Video format MP4

Electronic shutter Auto

Backlight compensation Support

Audio In Mic (G711_A)

Audio Out speaker

Storage TF Card（Max 128G）

function

Video recording

After the device is powered on, the system automatically starts recording videos. 1080P resolution HD loop video

4G communication

The device can upload data information, video, driving track, vehicle alarm and so on through the mobile network

Real-time positioning

GPS&BD dual mode positioning can record vehicle

trajectory Vibration alarm

After extinguishing (ACC off) the vehicle vibration is detected, a vehicle vibration alarm is immediately triggered and uploaded to the platform, at the same time, a photo is uploaded, and the wake up device recording lasts for five minutes

Collision alarm

In the process of driving, if there is a vehicle collision, avehicle collision alarm should be immediately started and uploaded to the platform, and the first 10s to 5s video should be pushed to the platform.

Interface definition

• Red Power+
• Black Power GND
• Orange ACC

Cara pemasangan Dashcam

Untuk memastikan dash cam berfungsi optimal dan terpasang dengan rapi serta tidak mengganggu estetika interior mobil, perangkat ini menggunakan kabel daya dengan sekring pengganti yang stabil. Instalasi ini memberikan suplai daya yang andal, menjaga dash cam tetap aktif tanpa gangguan.

Sebagai alternatif, pengguna juga dapat menggunakan kabel daya USB yang terhubung ke catu daya kendaraan melalui soket pemantik rokok. Namun, dalam skema ini, dash cam hanya akan menyala saat kendaraan dinyalakan. Ketika mesin dimatikan, perangkat secara otomatis ikut mati.

Harga tidak termasuk SD Card
