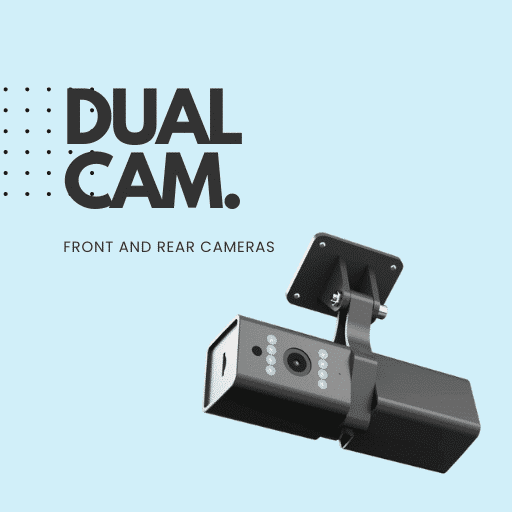

Dual Cam

Two cameras in one housing
Front and rear cameras are used to record videos of events that might happen on the road or inside a vehicle

Valuable visual data
Perfect for capturing both videos and photos before and after events

Data when you need it
Sending videos and photos to a dedicated server periodically or by request on chosen scenarios

Fast video file delivery
Dual camera supports High Efficiency Video Coding H265 to transmit high-quality files at speed

Spesifikasi

Day & Night Vision Effect

Day (Color), Night (Black & White)

Horizontal field of view 120°

Vertical field of view 70°

Dual Camera

Front and Rear (equal characteristics)

Camera resolution

Picture resolution: 1280 x 720 (default), Configurable: 160 x 120; 320 x 240; 640 x 480; 1920 x 1080

IR Distance 2 Meters

Cable length RS232 (3.5m)

Video resolution 720P

SD card 2psc. MicroSD card (Max 64G up to 40 hours of video)

Microphone Microphone – voice recording.*

(* Not installed in standard modification. Can be added on demand)

Dimensions 126.2 x 36.6 x 36.6 mm

Camera mounting Sticky tape (3M) or screws

Power Input voltage range 9 – 36 V

Power consumption 220 mA

Operating temperature -30 °C to +85 °C

Operating humidity Max 90 %

Features Real time clock (RTC) synchronization

Available over FM (via NTP, NITZ or GNSS)

Certificates CE, FCC, RoHS, UKCA
